Every automated machine bottoms out in a metal box full of decisions somebody made eighteen months before anyone pressed start. I make those decisions, and then I have to live in the box I built.
Control panel work is where the abstract part of automation meets a torque spec. A drive has to fit, get cooled, get fused correctly, and sit somewhere a technician can reach at 2am without removing four other things first. None of that shows up in the quote.

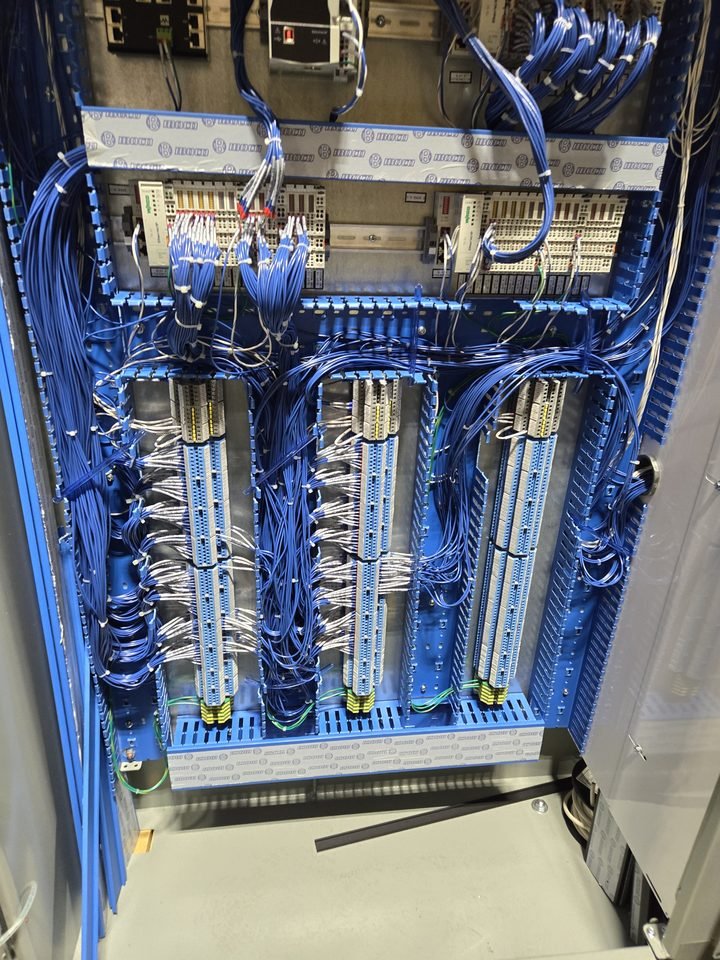

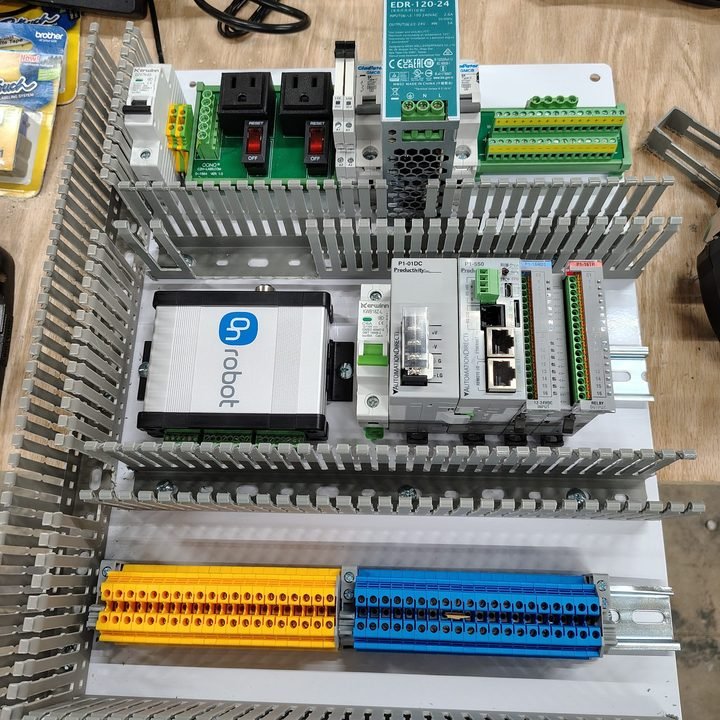

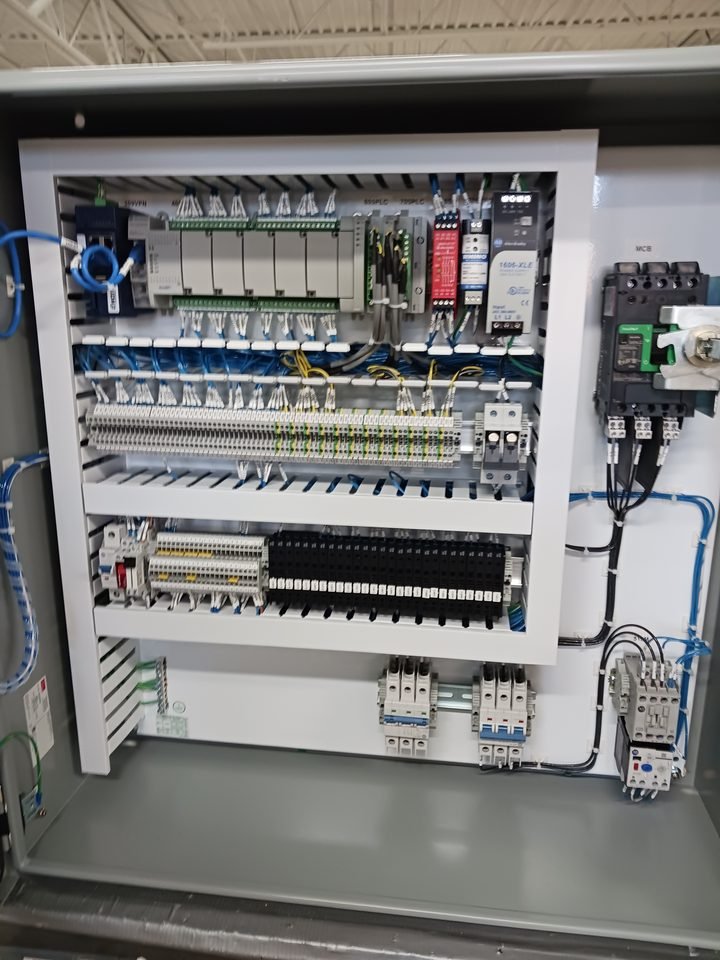

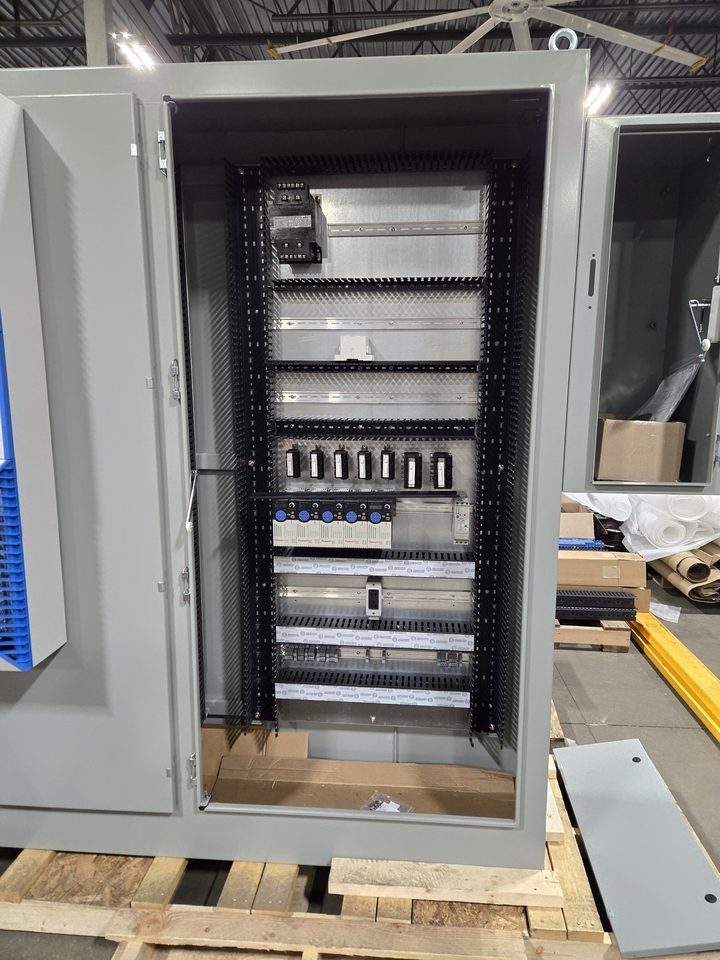

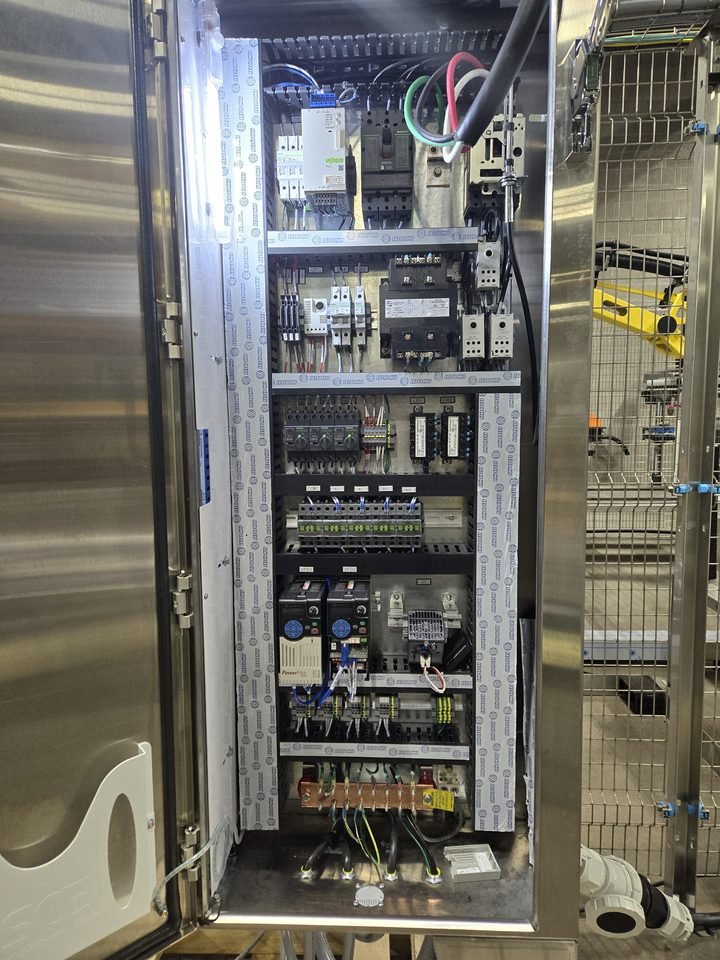

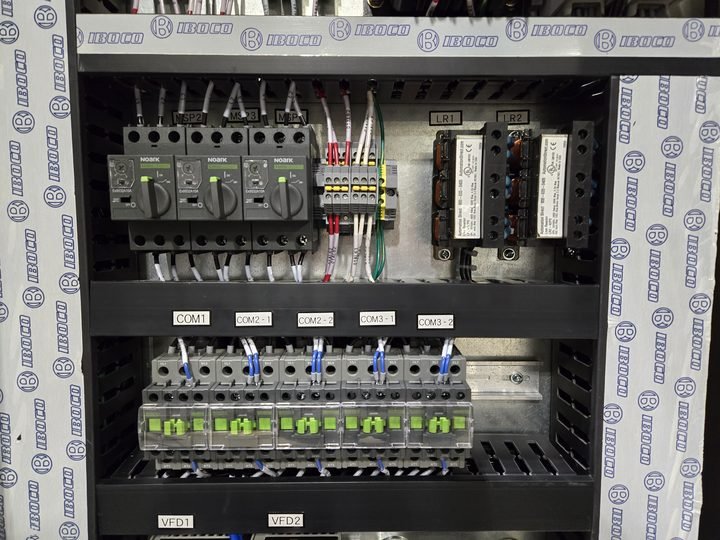

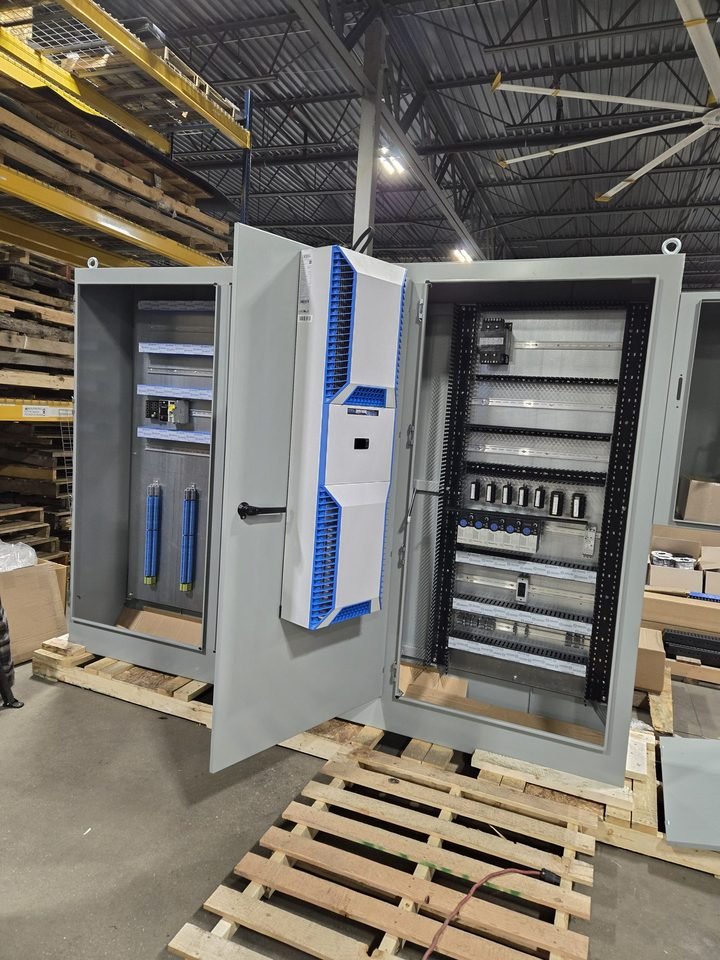

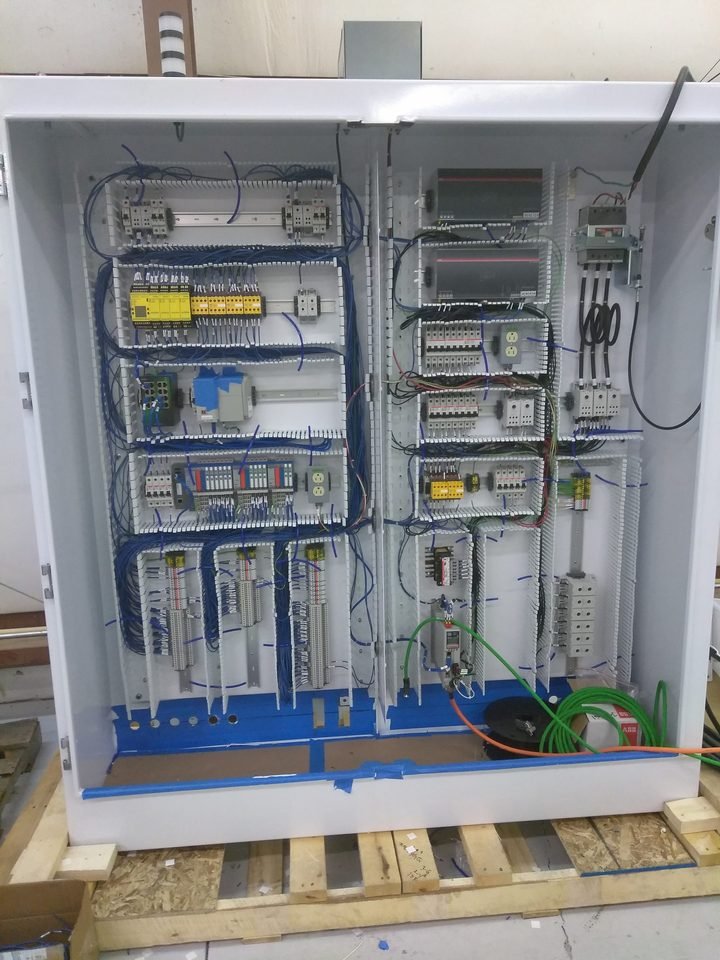

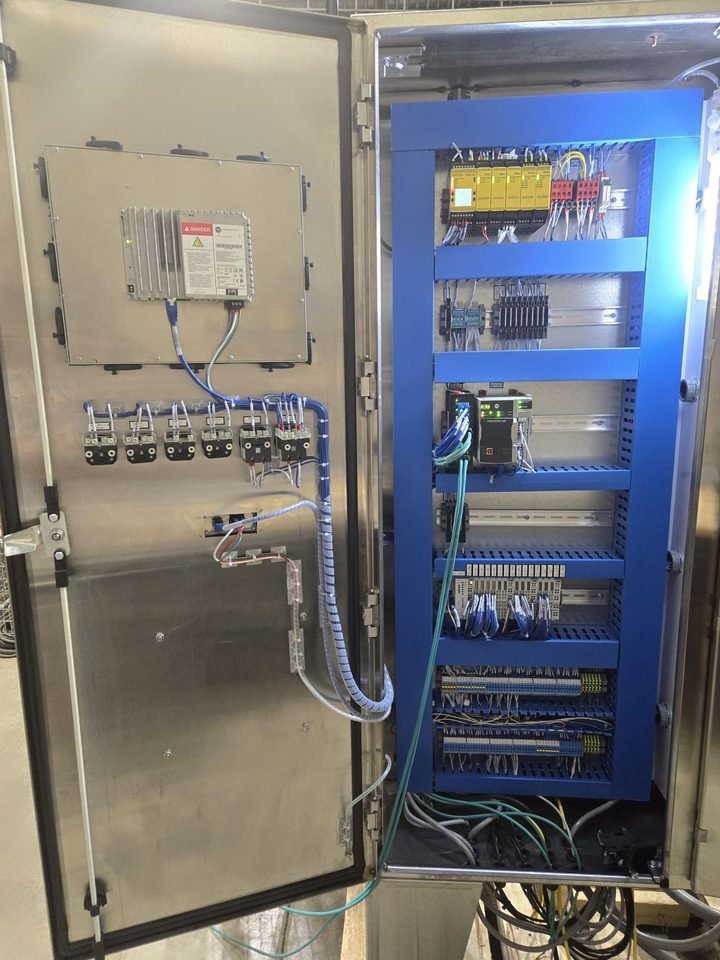

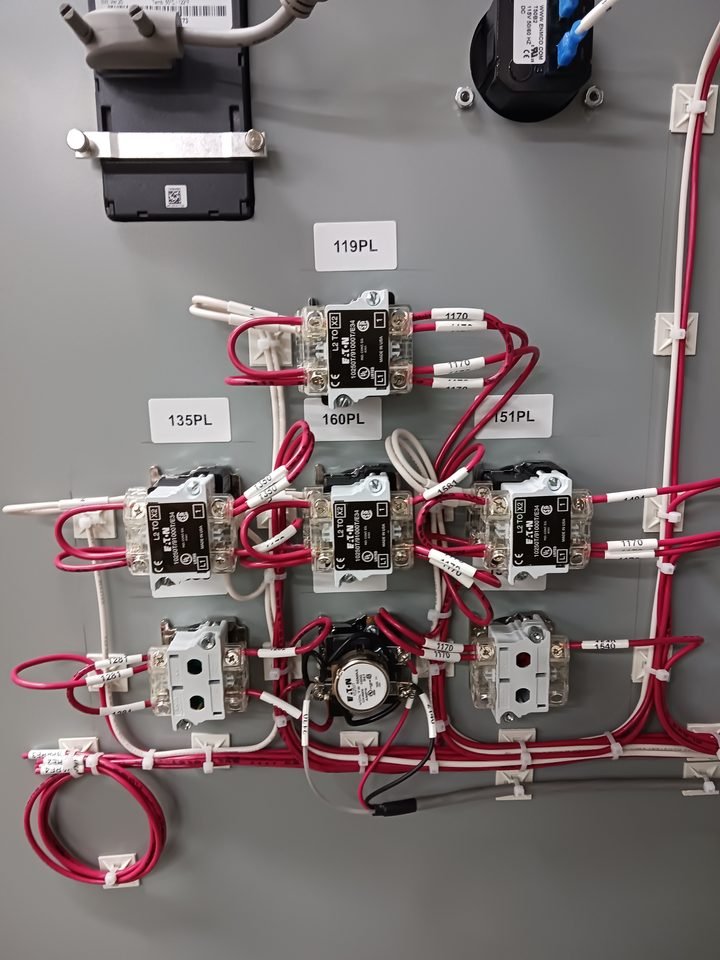

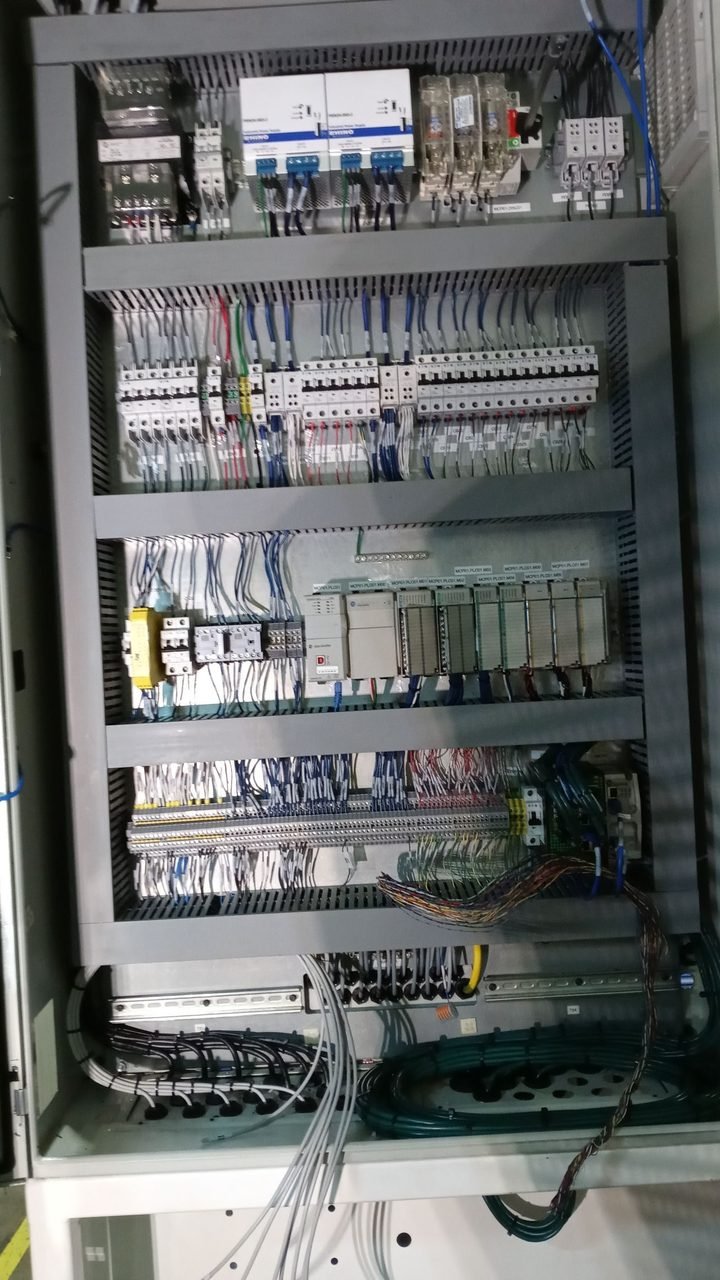

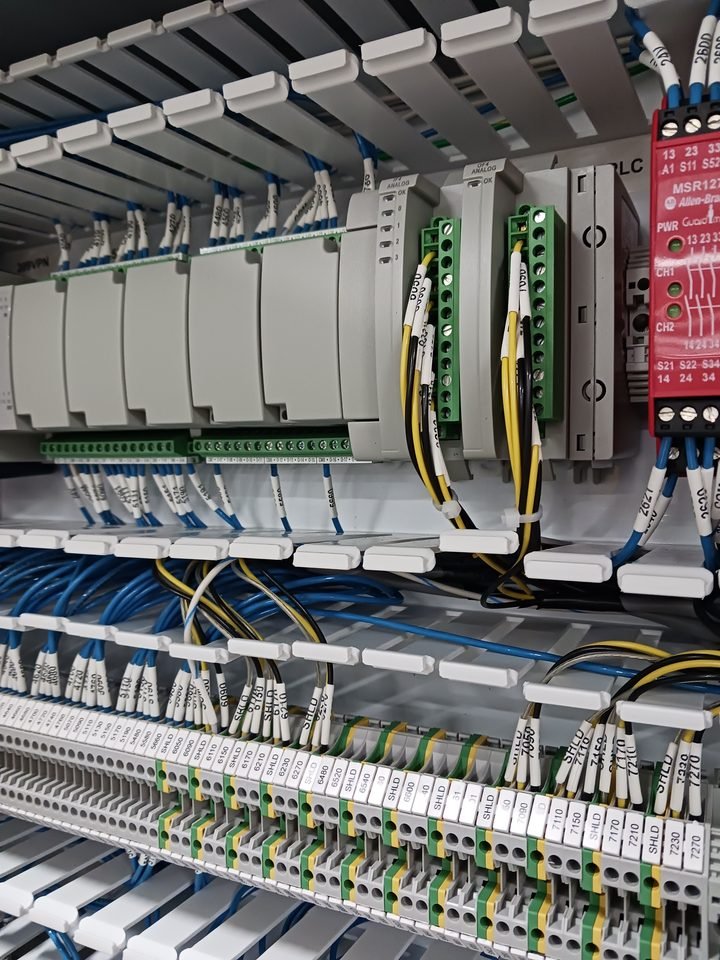

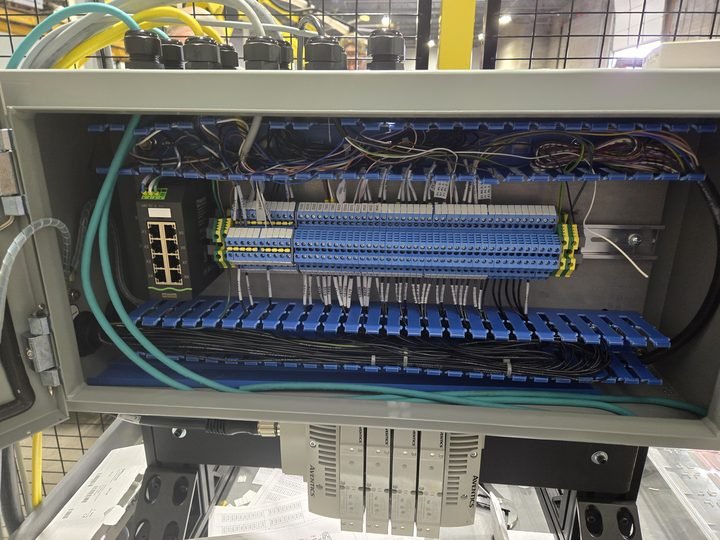

The photos below are panels at various stages — laid out on the bench, wired on the backplate, buttoned up and shipped. The protective film still on the DIN rail is the tell that these are new builds, not service calls.

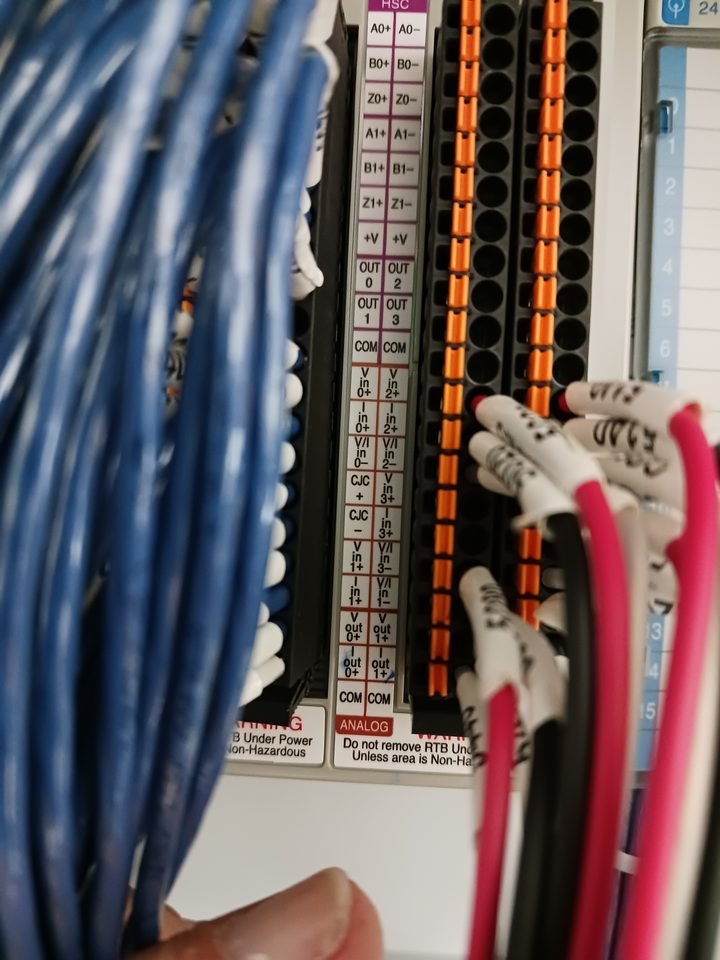

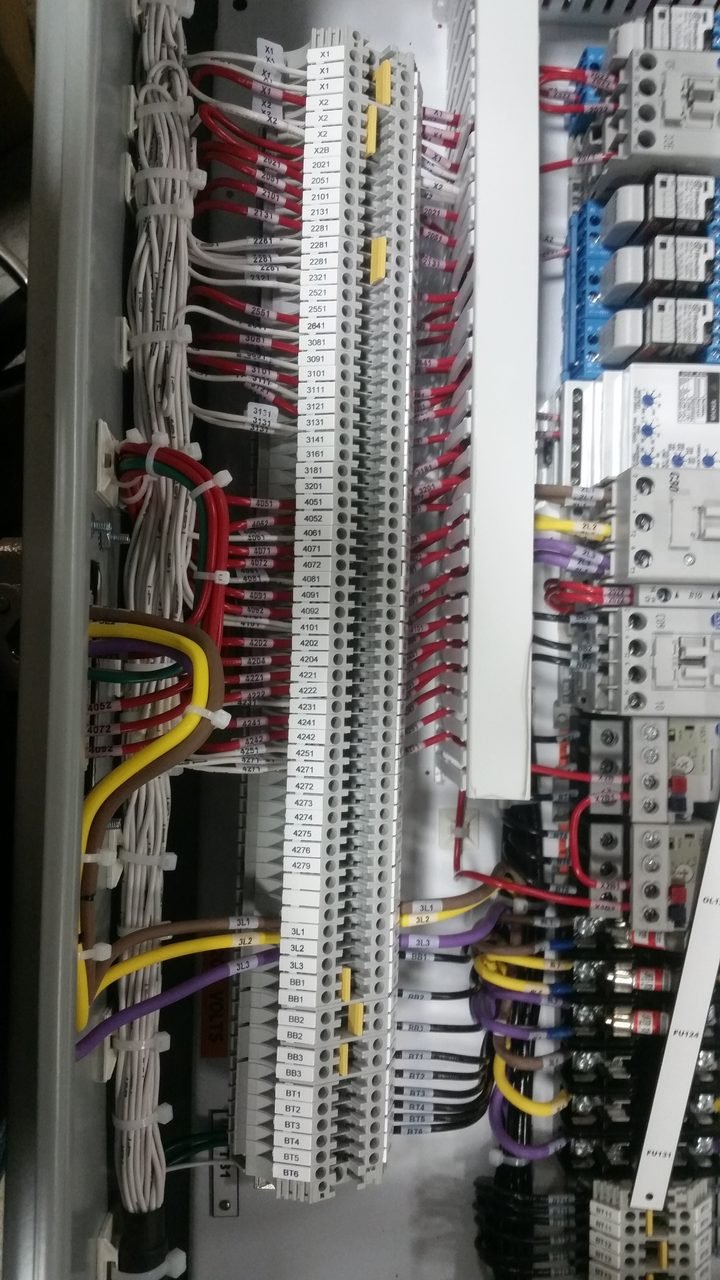

Wire management is where a panel earns its reputation. Not because tidy looks good in a photo, but because six months from now somebody has to trace one conductor out of four hundred while the line is down. Every choice below is that person's problem or that person's relief.

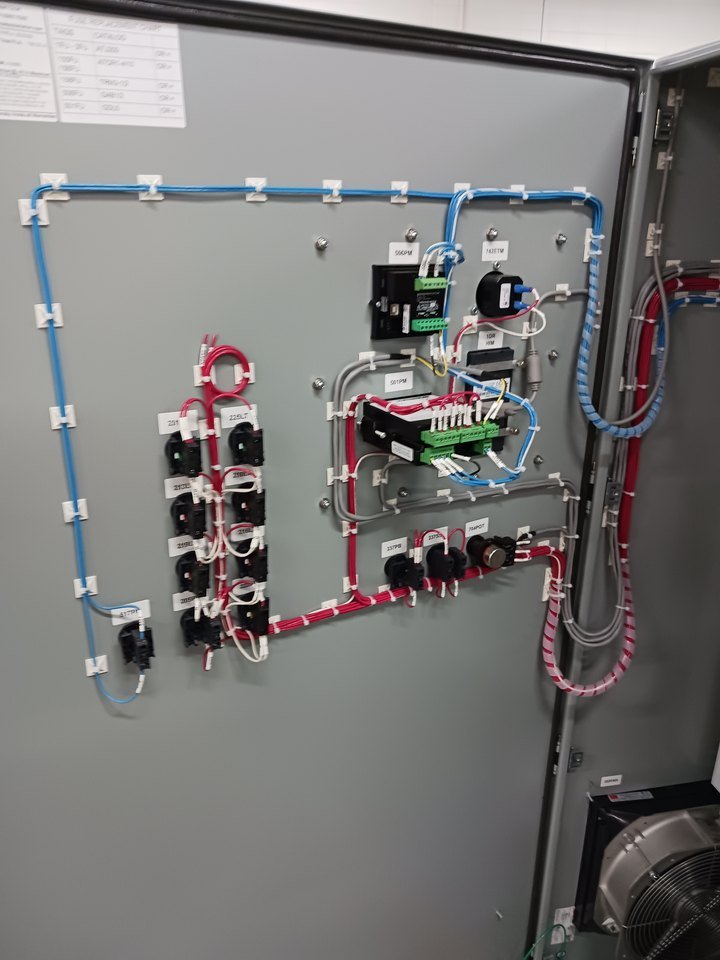

Door wiring is the hardest surface in the panel and the one everybody sees first. It has to survive the door being opened a few thousand times, so anything crossing the hinge needs a service loop and strain relief or it work-hardens and breaks — always six months later, always intermittently, always diagnosed as something else first.

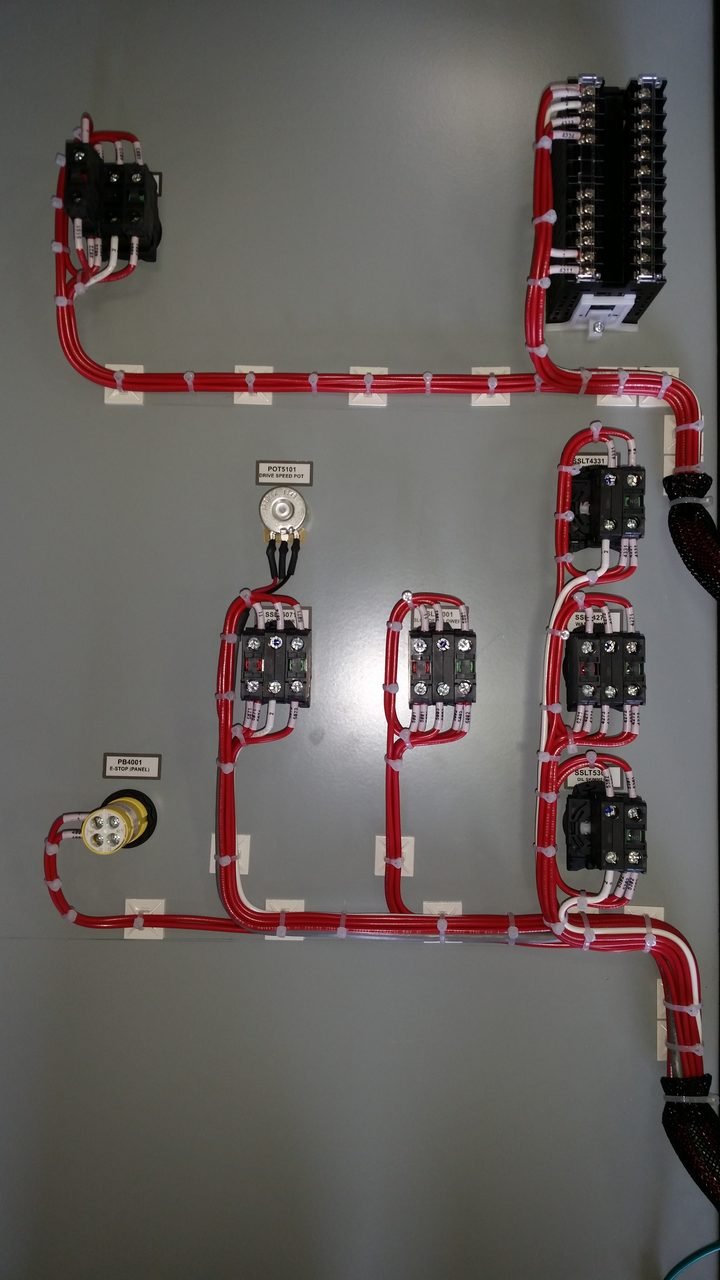

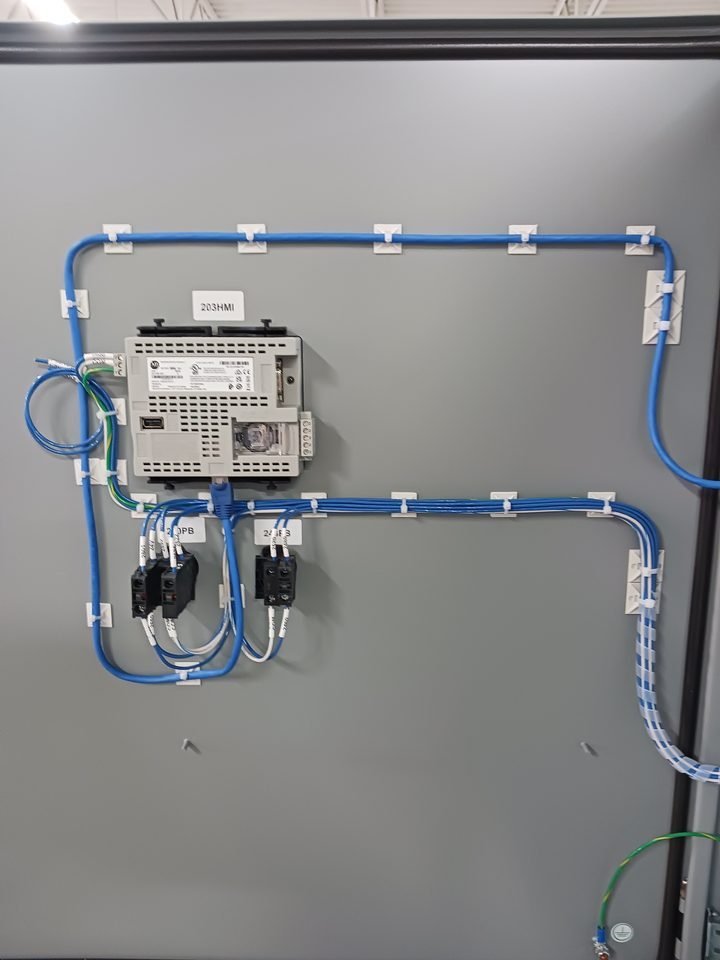

There's usually no depth for wire duct on a door either, so the routing is held by clips and the geometry is the only thing keeping it honest. Right angles, even clip spacing, no diagonals. It reads as fussy. It is actually the cheapest possible insurance: the person tracing a conductor in two years can follow a straight line with their finger.

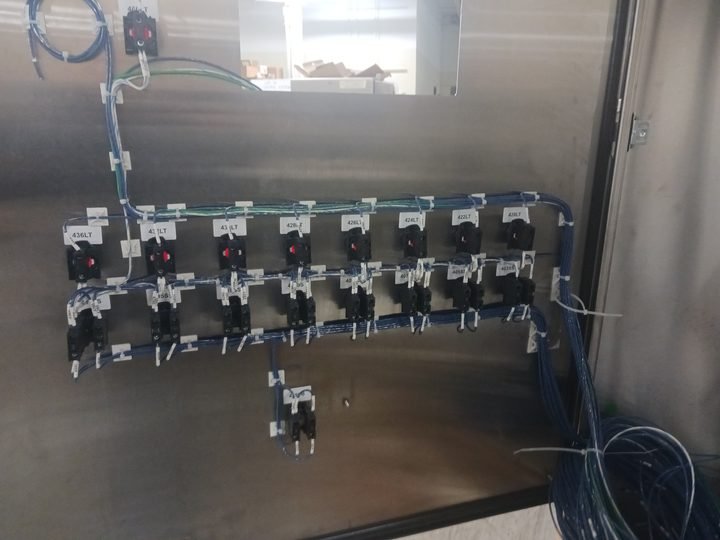

Rick's pick — one of the best doors he's wired. Worth knowing that panel builders judge each other on doors specifically, for exactly the reasons above.
- 1The technician is the real user. Not the buyer, not me. If a fuse can't be reached without pulling a drive, the layout is wrong no matter how tidy it photographs.

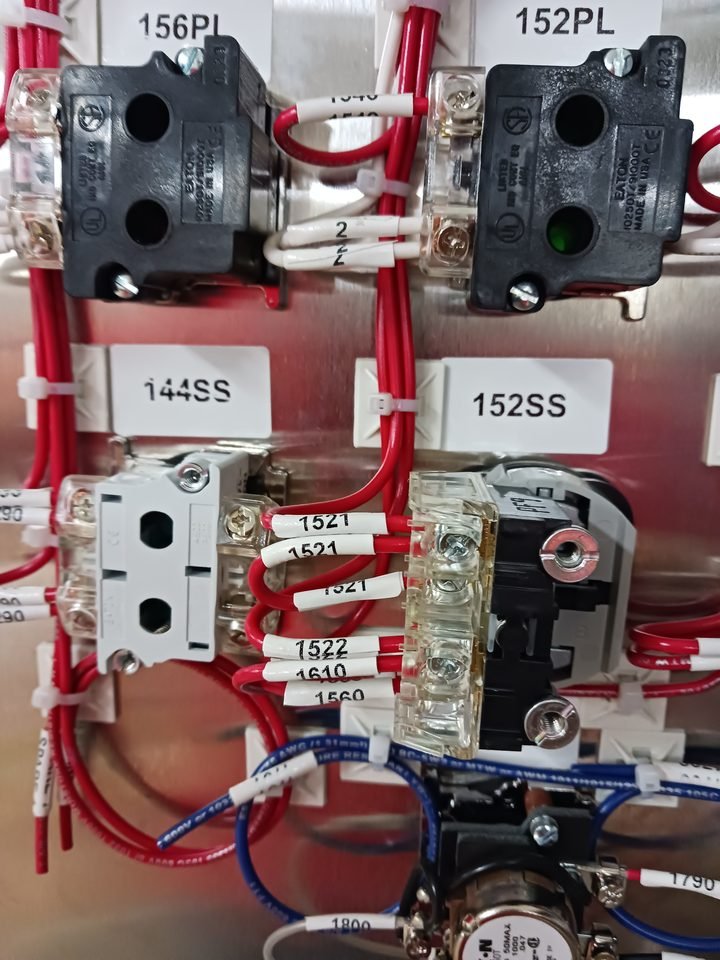

- 2Label at build time or never. Nobody has ever gone back and labeled a finished panel. Not once, in the history of the trade.
- 3Leave room you can't justify. There will be an add-on. There is always an add-on. The 20% of empty DIN rail that looked wasteful is the reason the retrofit takes a day instead of a week.
- 4Segregate power from signal like it's a moral position. Because the day it matters, it really matters, and the symptom will look like a software bug for two days first.
The most expensive panel I have ever seen was a cheap one. It was fine for a year. Then a contactor that cost eleven dollars took out a shift, and the plant manager did the arithmetic in front of everybody.
