Acoustics & Soundproofing

Isolation · Treatment · Room design

Everywhere else on this site I am shaping a signal with components. Here the room is the component — and it is the one component in the whole chain you cannot swap out for a better part.

Two different problems

Almost everyone conflates them, and the conflation is expensive. Isolation is keeping sound from crossing a boundary — your drums out of the neighbor’s bedroom, the road noise out of your take. Treatment is making the sound inside the room behave once it is there.

Foam on the wall does approximately nothing for the first problem. People buy it, hear no difference through the wall, and conclude acoustics is snake oil. It isn’t — they just bought the answer to a question they weren’t asking.

Isolation is mass, decoupling, absorption in the cavity, and an airtight seal. Miss any one of the four and the other three stop mattering. It is a chain, and like every chain on this site it is only as good as the worst link.

Isolation — the build

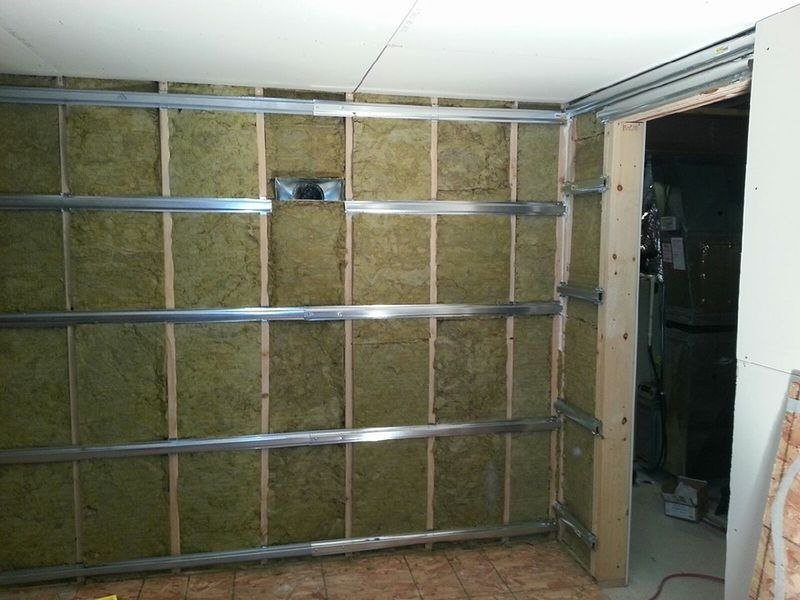

Steel stud framing packed with mineral wool, resilient channel running horizontal across the studs. The channel is the whole trick — it decouples the drywall from the structure so vibration has no rigid path through.
01Steel stud framing packed with mineral wool, resilient channel running horizontal across the studs. The channel is the whole trick — it decouples the drywall from the structure so vibration has no rigid path through.

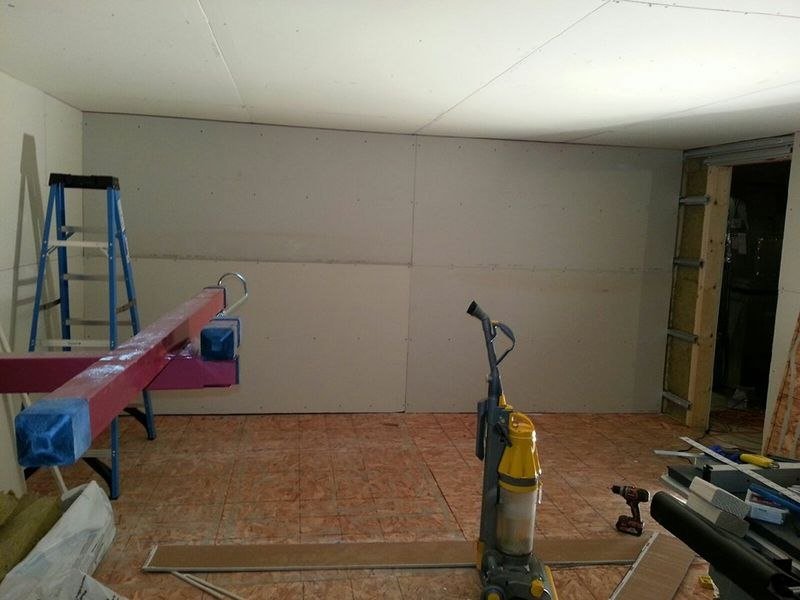

Skinning it. Mass goes on last and it goes on in layers, because two thinner sheets outperform one thick one.
02Skinning it. Mass goes on last and it goes on in layers, because two thinner sheets outperform one thick one.

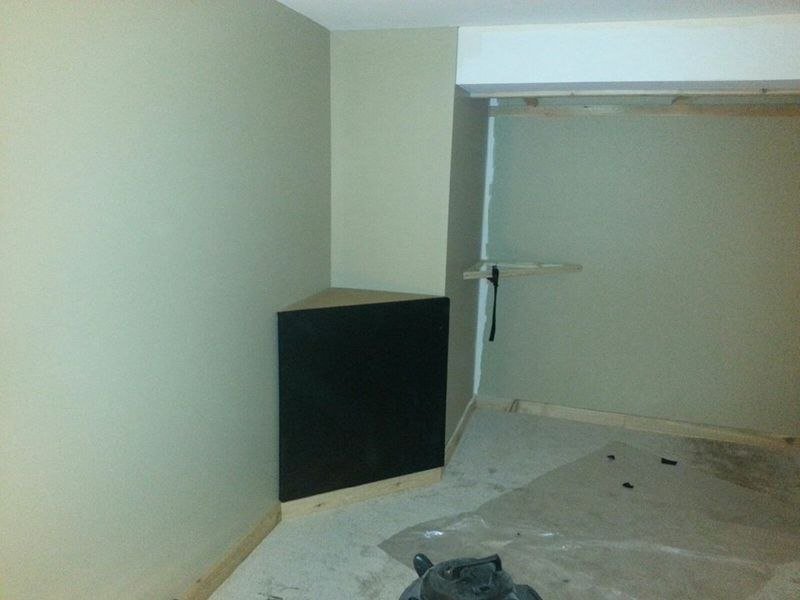

Shell closed and sealed, with the soffit framed above. Every penetration — outlet, duct, light — is a leak until it is deliberately treated.
03Shell closed and sealed, with the soffit framed above. Every penetration — outlet, duct, light — is a leak until it is deliberately treated.
The part nobody wants to hear

Isolation is a construction problem, not a product you buy. It is decided when the wall goes up and it is enormously expensive to add afterwards. Everything sold as a shortcut is treatment wearing isolation’s clothes.

The ventilation silencer

Here is the problem that catches everyone. You have just spent months building a sealed box. People have to breathe in it. So you cut a hole through the wall you were so careful about, run a duct, and hand every bit of noise a straight path in and out.

A duct is an acoustic short circuit. Sound travels in straight lines, and you have just built it a corridor.

The fix is to make the air take a route that sound will not survive: fold the path, line every surface of it with absorption, and put mass around the outside to catch whatever is left. The air does not care how many corners it turns. Sound loses energy at every one of them.

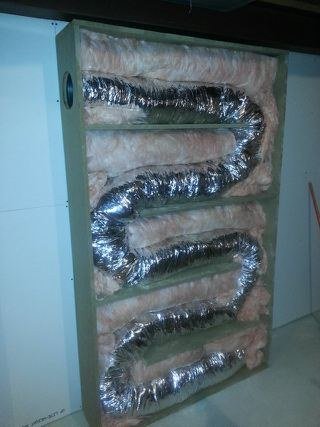

The principle, exposed. Flexible duct routed as a serpentine inside a baffled plenum — several feet of folded path in the depth of a wall cavity. Each switchback is another chance to absorb.
04The principle, exposed. Flexible duct routed as a serpentine inside a baffled plenum — several feet of folded path in the depth of a wall cavity. Each switchback is another chance to absorb.

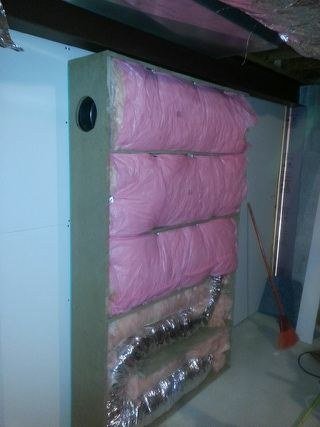

Packing the cavity around the run. The insulation is not filler; it is the working part. Every reflection off it costs the sound something and costs the airflow nothing.
05Packing the cavity around the run. The insulation is not filler; it is the working part. Every reflection off it costs the sound something and costs the airflow nothing.

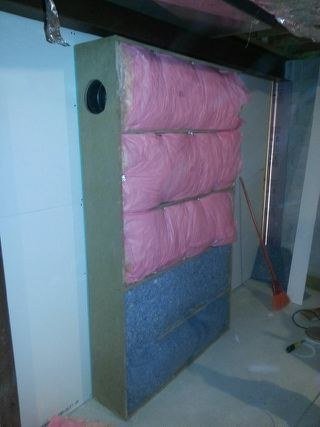

Fully packed, denser material at the base where it does the most good. Absorption is a depth problem, which is why this is the thickness it is.
06Fully packed, denser material at the base where it does the most good. Absorption is a depth problem, which is why this is the thickness it is.

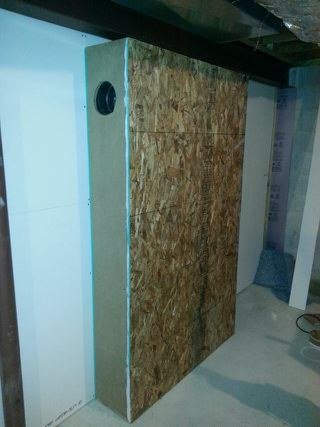

Skinned and closed. From the room it is a wall with a vent in it. Inside, it is several feet of hostile territory.
07Skinned and closed. From the room it is a wall with a vent in it. Inside, it is several feet of hostile territory.
The trade-off you have to respect

Silencers fight airflow. Choke the path too hard and either the room does not ventilate or the fan has to work harder — and a straining fan is itself a noise source, so you can absolutely make the problem worse by over-solving it. Length and lining, not restriction. Give the air a long, soft, generous route rather than a tight one.

Treatment — fabricated, not bought

Once the room exists, it has opinions. Parallel walls give you flutter echo, corners load up with bass, and the first reflection off each side wall arrives just late enough to smear the stereo image. All three are geometry, and all three are fixable if you build for them.

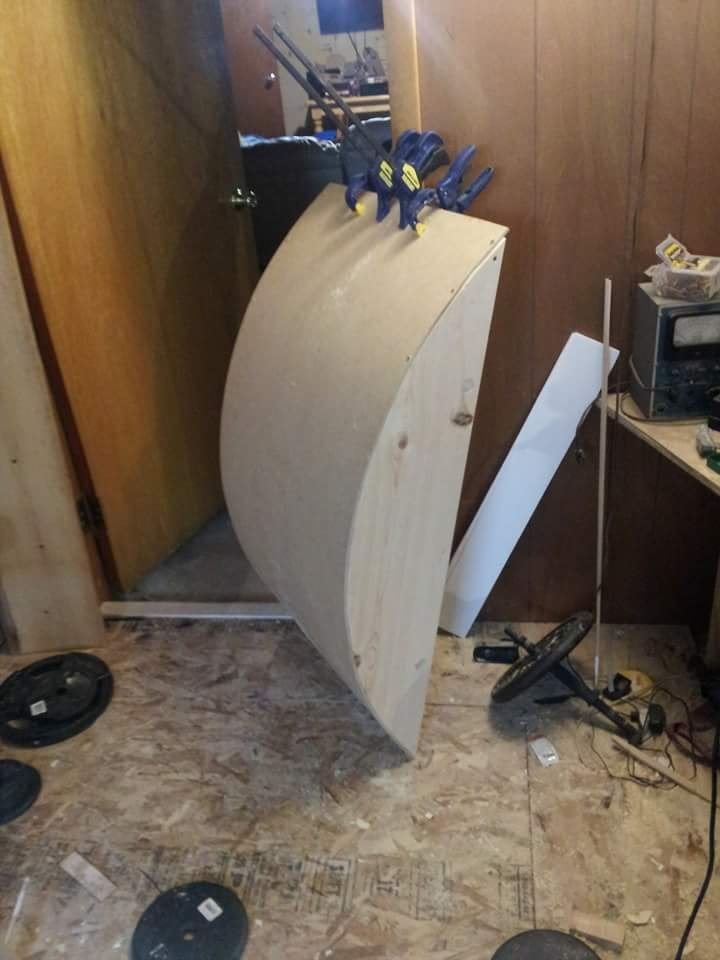

Laminating a curve. Clamped up over a form and left to take a set — a curved surface scatters instead of reflecting straight back at you.
08Laminating a curve. Clamped up over a form and left to take a set — a curved surface scatters instead of reflecting straight back at you.
The same panel from the front. Curves are harder to build than flats, which is most of why rooms are full of flats.
09The same panel from the front. Curves are harder to build than flats, which is most of why rooms are full of flats.

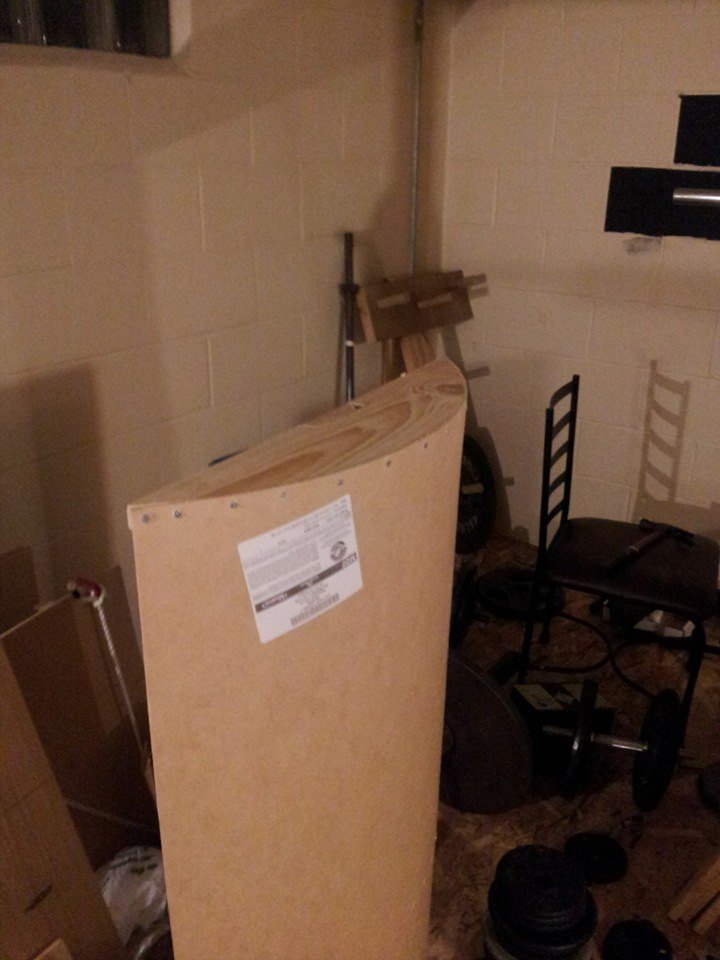

Corner trap, floor to ceiling. Bass pressure is highest where two boundaries meet, so that is where the absorption goes and why a full-height trap beats four small ones.
10Corner trap, floor to ceiling. Bass pressure is highest where two boundaries meet, so that is where the absorption goes and why a full-height trap beats four small ones.
In build. Frame, absorptive fill, fabric — the same three ingredients whatever it costs.
11In build. Frame, absorptive fill, fabric — the same three ingredients whatever it costs.
The room, finished
Control room. Monitors on stands and decoupled from the desk, absorbers flanking the position at the first reflection points, dark ceiling, and a listening spot that was chosen before anything was mounted.
12Control room. Monitors on stands and decoupled from the desk, absorbers flanking the position at the first reflection points, dark ceiling, and a listening spot that was chosen before anything was mounted.

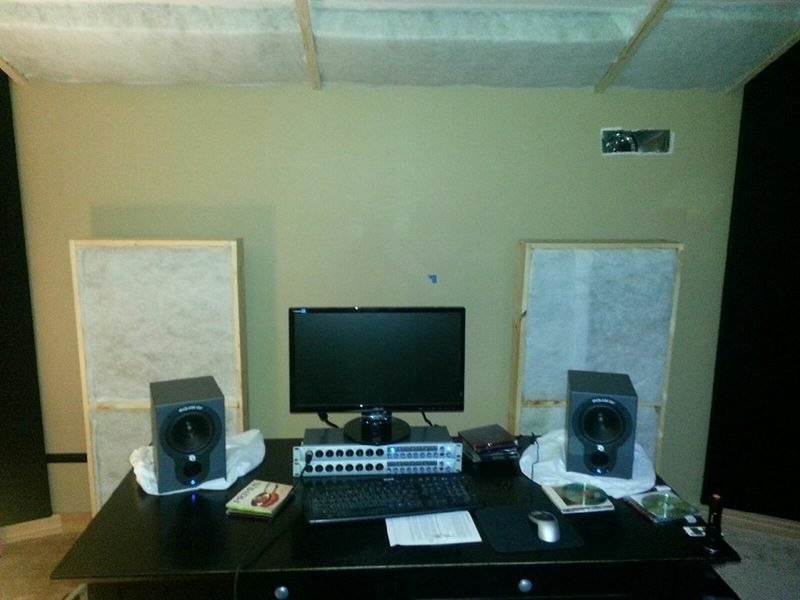

The same position, working. This is what all of the framing above was for.
13The same position, working. This is what all of the framing above was for.
What I actually believe about rooms

Measure the room, not the gear

A modest monitor in a treated room beats an expensive one in an untreated one, every time and not close. The room is the largest single variable in the chain and the one people spend last on.

Bass is where the money goes

Highs are easy — almost anything soft absorbs them. Low frequencies need depth and volume, which means real traps taking real floor space. There is no thin solution.

Symmetry matters more than treatment

If the left and right sides of the listening position are not mirror images, no amount of panel will fix the image. Get the geometry right first; it is free.

Dead is not the goal

A room killed stone dead is exhausting to work in and lies to you about reverb. You want controlled, not absent — which is why diffusion exists alongside absorption.

Why this page is on an automation site

Because it is the same discipline. A signal chain, a set of physical constraints, a specification the result has to meet, and a build that is either right the first time or expensive to revisit. The only difference is that the medium is air and the tolerance is something you hear rather than something you measure with a meter.
